Features

Short Distance with large Screen size

Suitable for a variety of meeting room environments to include exhibitions, meeting rooms, class rooms, video conferencing, museums and much more!  Enabling an installation close to the screen and away from the presenter, direct light and removal of shadows is avoided making your presentation more efficient and impactful.

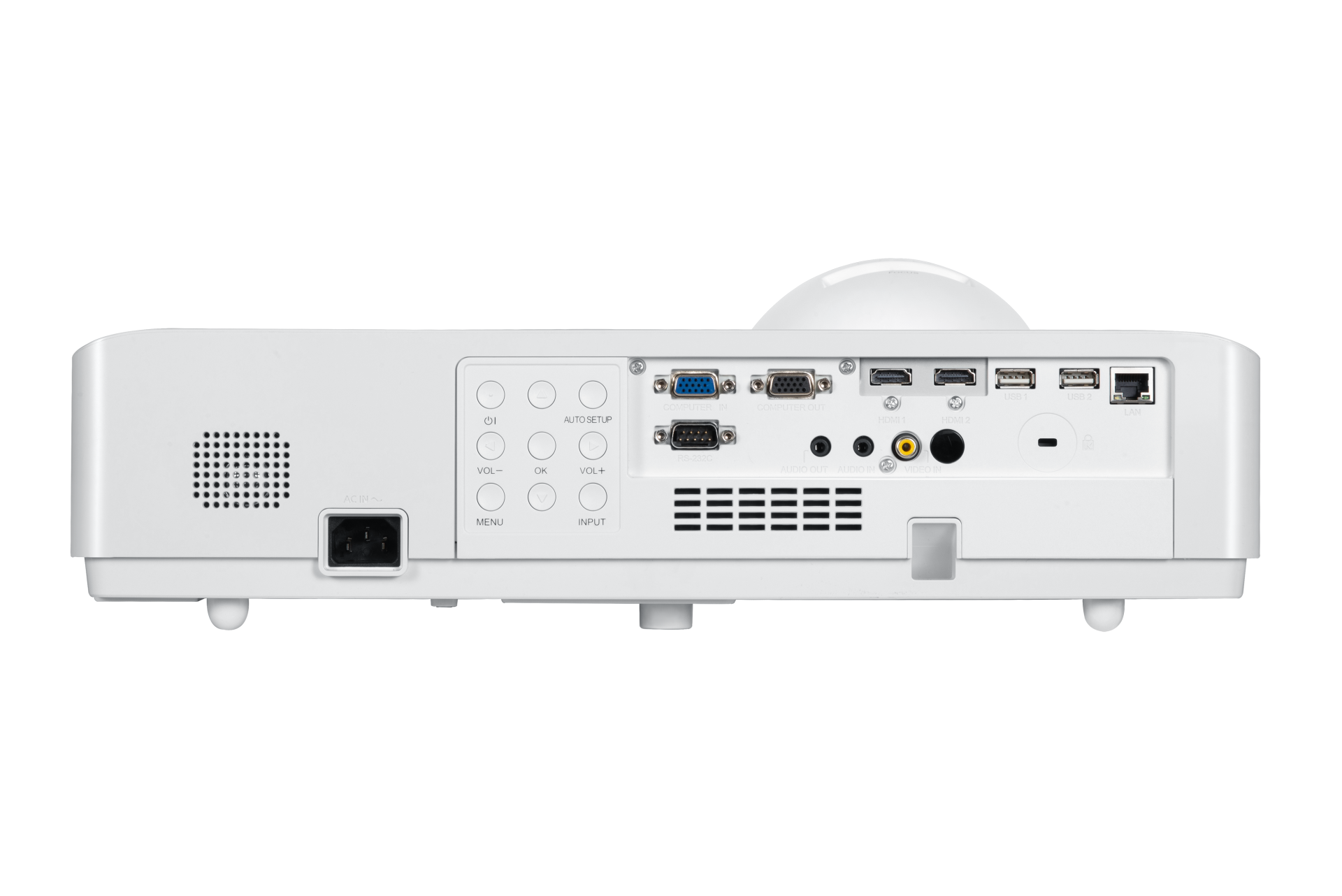

Multiple sources terminal

Equipped with 2 sets of high image quality HDMI terminals, 1 set of VGA input terminals, 2 sets of USB, video terminals and so on, the rich terminal interface makes it easy to respond to a variety of signal sources.

Quick Start and Quick off

Laser technology gives the presenter the ability to quickly turn on and off the projector without having to wait for the unit to cool down, unlike older lamp technology based projectors which required a defined period of time.

Designed for colour performance - 3LCD Technology

Take full advantage of 3LCD rich colour fidelity providing the optimum colour brightness levels equal to white levels.    The rich colour along with the ability to reproduce higher colour gamut provide a more real and natural image. Enjoy the 3LCD visual performance without the rainbow effect, which is commonly associated with other display technologies.

No Light Source Replacement for up to 25,000 hours

The Laser light source has an ultra-long service life of up to 25,000 hours in eco mode or up to 20,000 hours in standard mode. With these environmental friendly characteristics, 30% of energy savings can be accomplished compared to general lamp based projectors.

Key Functions

◆ Corner Keystone Correction
◆ 360° free and Flexible installation function
◆ Auto Image Rotation
◆ DICOM simulation mode
◆ Built-in LAN for remote monitoring
◆ Quick start and Quick off function
◆ One-button black screen function
◆ Overheat automatic shutdown function
◆ Password locking and anti-theft lock latch
◆ Compatible with Crestron – PJ-Link – AMX

Vue2 VU-U5C Specifications

Model VU-U5C

Brightness (ISO lumens)*

5000 Lumens

Resolution

WUXGA (1920x1200)

Contrast

1500000:1

Weight

7.2 KG

Dimension (WxHxD)

420 x 100 x 280mm (not incl. protruded part)

Laser

Illumination by Nichia

For more information, please download our product specification PDF.

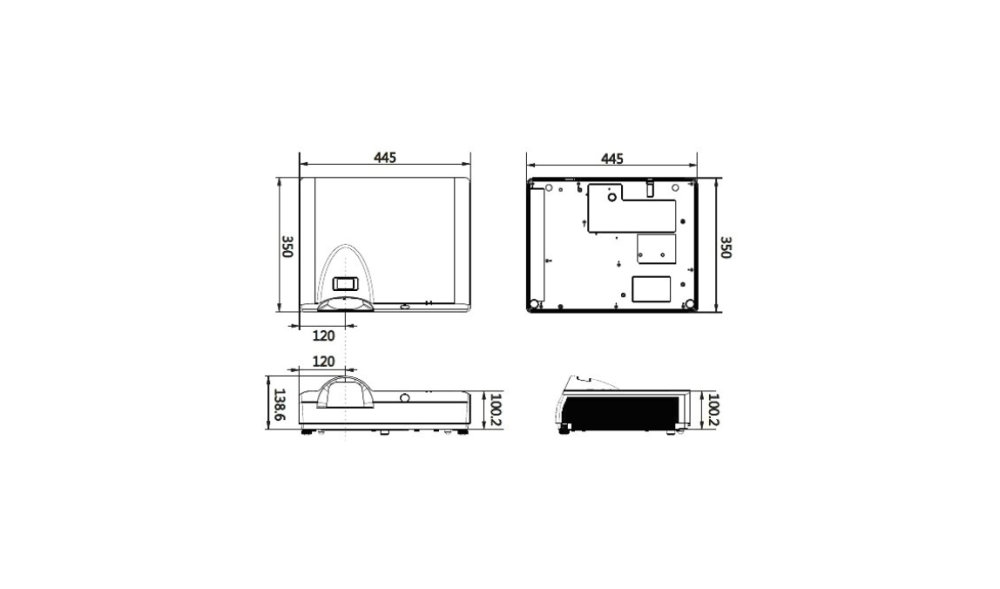

Vue2 VU-U5C Dimensions

Vue2 VU-U5C dimensions illustration

Vue2 VU-U5C Projection Table

WUXGA (16:10 aspect ratio)

Screen Size (inch) Distance

60"

0.54

70"

0.64

80"

0.74

90"

0.83

100"

0.93

120"

1.12

150" 1.39
Want to know more about this product? Get In Touch
